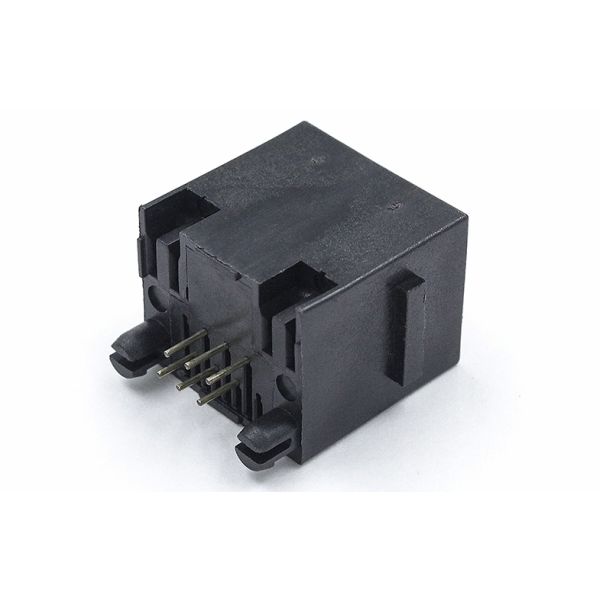

180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B

  • 1
  • 2
  • 3

Brand Name : TM

Model Number : TM52T511SBX1B

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 500K/year

Delivery Time : 15 Days

Packaging Details : 90pcs/tray,1800pcs/carton

LED Option : No

Jack Type : RJ11

Number of Positions : 6

Terminals per Port : 6

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability : 750 CYCLES MIN

Minimal Order : 2520pcs

Package : 70pcs/tray,2520pcs/carton

Contact Now

6p6c 180 Degree RJ11 Jack with Ear PBT Black RJ11 Connector without transformer TM52T511SBX1B

Materials:


Housing:PBT,UL94V-0 ( RoHS )
Insert: PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 15.6 mm
Connector Width: 16.0 mm
Connector Height: 12.85 mm
Termimal Solder Pin Length: 3.1 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ11 Without Transformer (TM52T511SBX1B) Attributes:

Model: TM52T511SBX1B
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 70pcs/tray,2520pcs/carton
Carton size: 39*27.5*30cm
Delivery Time: 15 Days
Supply Ability: 5KK/year

RJ45 Female Connector (TM52T511SBX1B) Mechnical Drawing:

180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B
