6 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX11

Brand Name : TM

Model Number : TM59B521EXX11

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 500K/year

Delivery Time : 15 Days

Packaging Details : 60pcs/tray,1200pcs/carton

Product Type  : RJ11 Modular Connector

Jack Type : RJ11

Number of Positions : 6

Terminals per Port : 6

LED Option : No

Shielded EMI Tabs : No

Voltage rating : 125 V

Current rating : 1.5 A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability : 750 CYCLES MIN

Minimal Order : 500pcs

Package : 60pcs/tray,1200pcs/carton

Contact Now

6P6C shield 2X1 Port 90 Degree rj11 modular connector With Shield TM59B521EXX11

Materials:

Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ11 Modular Jack
2 x 1 Port / Single Port / Two Port
Connector Length: 28.2 mm
Connector Width: 13.79 mm
Connector Height: 25.3 mm
Termimal Solder Pin Length: 3.25 mm
6P6C ( 6 positions 6 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ11 Without Transformer (TM59B521EXX11) Attributes:

Model: TM59B521EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 60pcs/tray,1200pcs/carton
Delivery Time: 20 Days
Supply Ability:

5KK/year

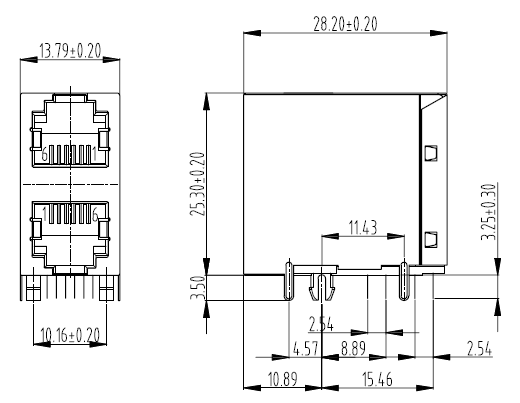

RJ11 Female Connector (TM59B521EXX11) Mechnical Drawing:

6 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX116 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX116 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX116 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX116 Positions Rj11 Shielded Connector 2X1 Port 90 Degree Modular TM59B521EXX11
